REFORM side delivery belt rake

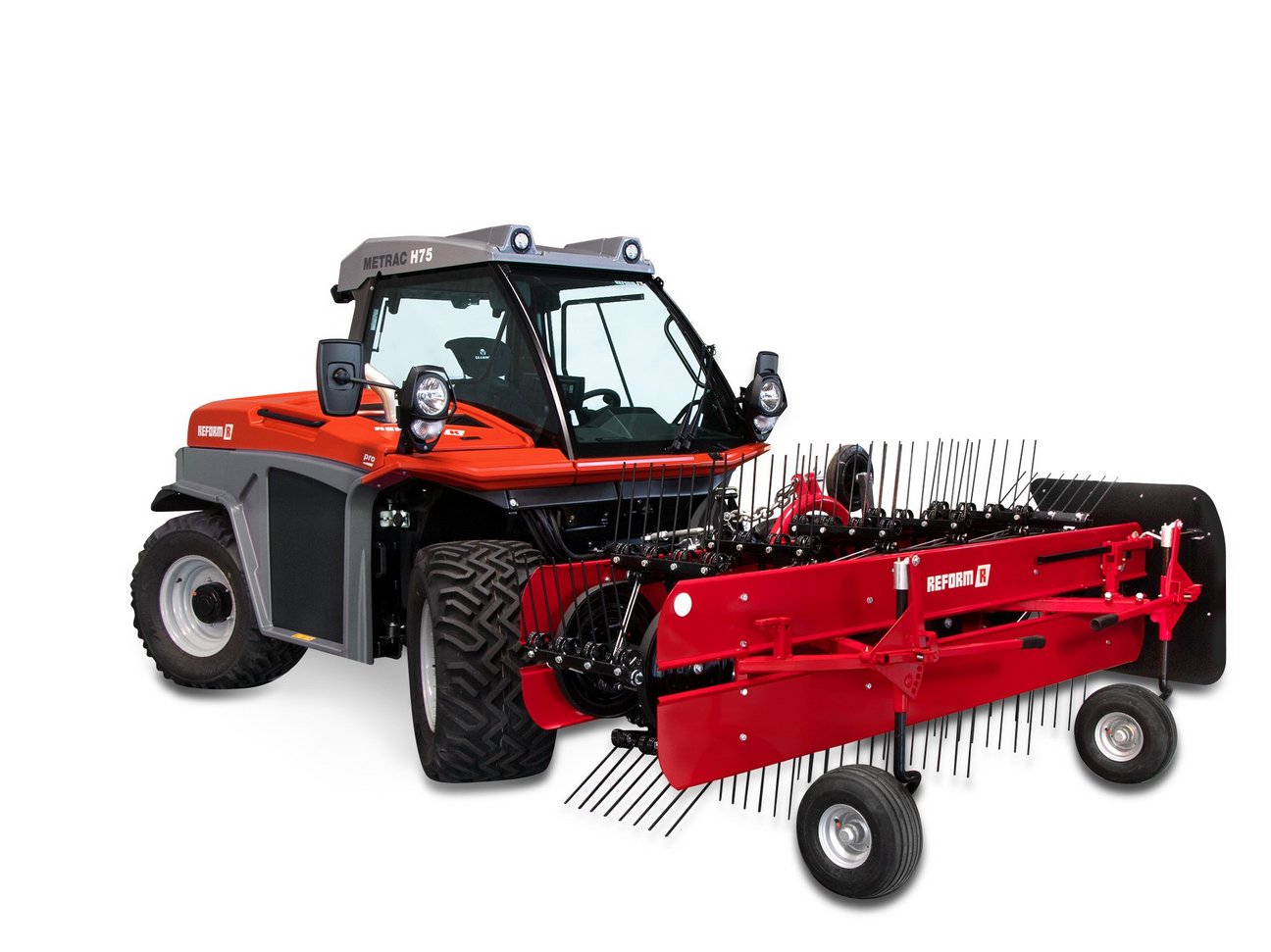

The REFORM side delivery belt rakes for the Metrac.

The various REFORM side delivery belt rake models are available in working widths from 2.3 m to 2.7 m. The forage is placed on the left side, where a deflector ensures clean forage placement - which can be folded hydraulically if required.

The two smaller models 230 and 250 are equipped with 4 pairs of tines per tine rake. The large model BR 270 has 5 pairs of tines.

The side delivery belt rakes are mounted on a 3-point linkage frame, Cat. I. The oscillating suspension and the two large travel wheels at the front ensure perfect contour following.


Technical data

  BR 230/4 BR 250/4 BR 270/4
 Attachment frame Kat. I Kat. I Kat. I
 Working width in mm 3000 3200 3200
 Transport width in mm 2400 2650 3000
 Clearing width 2300 2500 2550
 Number of rows of tines 13 14 15
 Tines per row of tines 4 4 5
 Weight kg 235 255 260
