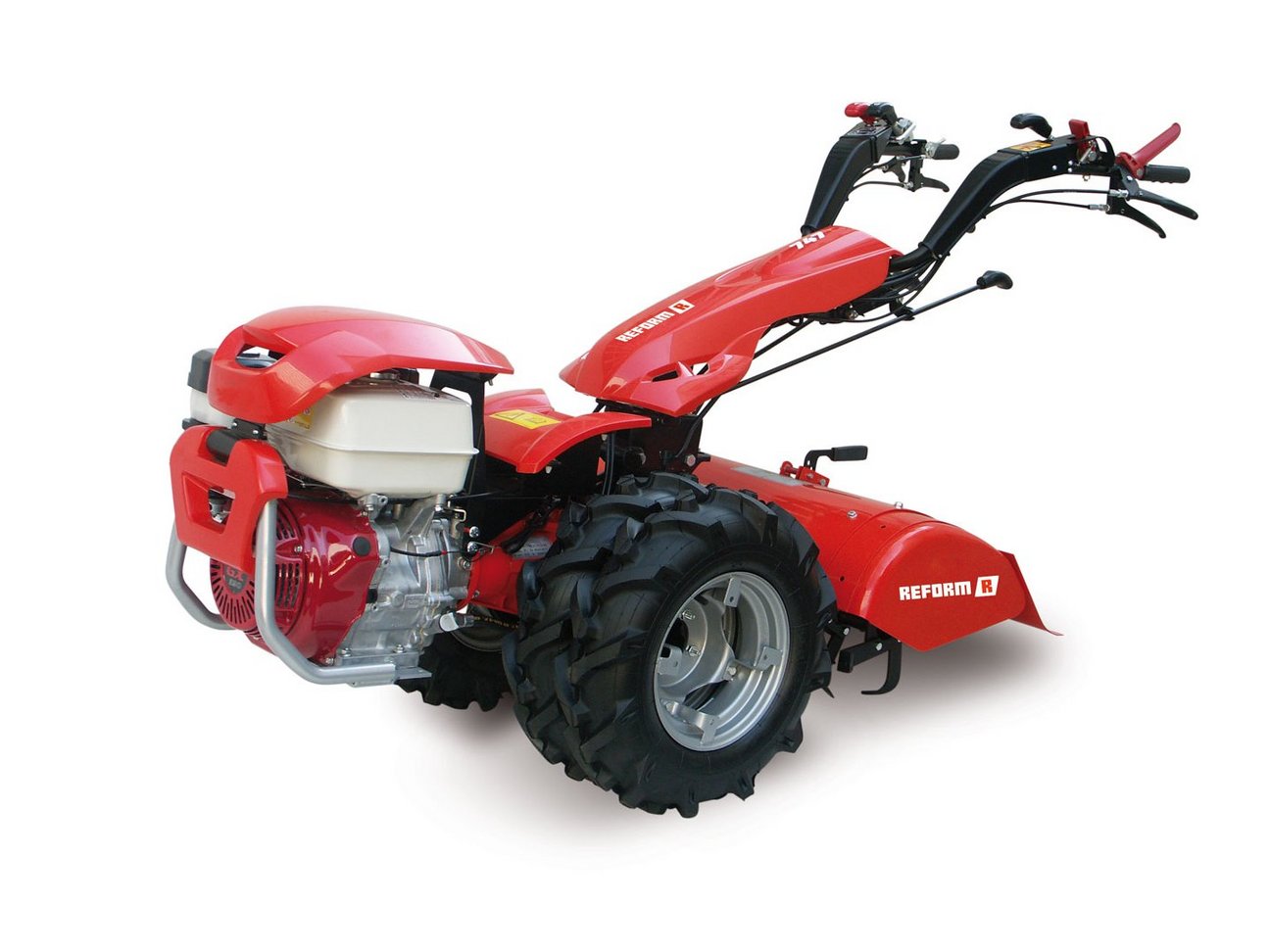

Motech CM747

The robust all-rounder.

The Motech CM 747 with reversible bar and PowerSafe® clutch is the professional powertool for horticulture and landscaping. Equipped with a lockable differential and steering brake, this device is ideal for rotovating, ridging, stacking and ploughing. The Motech CM 747 can also be used in an ideal combination with cutter bars, lawn mower, road brush or mulcher and for winter service. In addition, a powerful 8.7 kW (11.8 hp) engine provides sufficient power for all applications.

The benefits at a glance

Engine

4-stroke petrol engine
HONDA GX 390E
8.7 kW/11.8 hp
3,500 rpm nominal speed

Axle/steering

Axle with differential gear,
lockable
steering brake and parking brake
on request Axle widening

Drive

Gear drive in oil bath
3/3-speed shuttle gearbox
Speeds from 1.3 to 4.5 km/h
Clutch
Oil-bath multi-disc clutch
with PowerSafe®Function

Interface

PTO
990 rpm
at 3,500 rpm
clockwise
Coupling point
Screw lock
on request, tool-less quick release lock

Technical data

Power 8.7 kW/11.8 hp
Dead weight From 114 kg
Additional
equipment
  • Axle widening 12 cm
  • Quick release parts
  • Attachment extension 8 cm
  • Ballast weights for wheels
  • Snow chains
  • Auxiliary wheels, steel cage wheels
Attachments
  • Rotovator BF 66 and BF 80
  • Oil bath mower drive with various cutter bars up to 145 cm
  • Lawn mower 100 cm
  • Ridging device, single-blade plough
  • Snow plough 100 and 140 cm
  • Snow blower 70 cm
  • Power harrow/seed drill 75 cm
  • Road brush 110 cm
  • Municipal sickle mulching device KS 60
  • Twin rotor HD mower VS 80
