The new premium class: Muli T15 V

Boundless power, unrivalled efficiency.

143 HP . 550 Nm . Continuously variable transmission . Up to 60 km/h

Infinitely variable strength



  • Powerful engine performance
  • Great traction
  • High payload

Efficient without limits



  • Intuitive operation
  • Best maintenance access
  • Unrivalled ground clearance

Details

Motor

DEUTZ TCD 3.6
EU Stage 5 (cf. Euro VI)
105 kW / 143 hp
550 Nm torque
... at 1,600 rpm compared to the Muli T10 X:
+ 30% more engine power
+ 30% more torque
- 25% lower engine speed

Traction drive

REFORM stepless gearbox with additional group shifting
Permanent all-wheel drive
Longitudinal differential with multi-plate clutch
Hill start assist (Hill Holder)
Country-specific up to 60 km/h

Chassis

High ground clearance and manoeuvrability:
Portal axles and all-wheel steering with 3 steering modes
HCS independent wheel suspension with levelling control

reinforced version:
10 tonnes total weight
6 tonnes payload
5.5 t axle load front & rear

Device drive

Rear PTO 540 or 1000 rpm
Additional hydraulic device drive: 138 l/min, 310 bar
Up to 6 additional control valves for superstructures and attachment

COMFORTABLE

Tiltable comfort cab

  • Compact and optimally insulated cab
  • KTL-primed frame for durability
  • Powerful automatic climate control
  • Sliding window front and rear
  • With windscreen heating as standard
  • Dimmable lighting for control elements
  • Multifunction joystick on the armrest
  • Ergonomically arranged controls
  • Practical storage options

Intuitive operating concept

Central 12“ colour display for the best overview

  • Clearly visible machine information
  • Interactive screen with tooltips
  • Touch operation
  • Attachment management with customisable event control
  • 4 camera inputs and flexible display selection

Ergonomic operation

  • Quick selection of functions thanks to R-COM
  • Intuitive setting options
  • HIGHLIGHT: intelligent attachment management

ECONOMIC

Easy maintenance

  • Cabin can be tilted forwards without tools
  • Optimum access to the motor from both sides
  • Proven maintenance flaps
  • Tool-free and simple daily inspection work

Efficient operation

  • Quickly on site with power-saving travel drive
  • Country-specific travelling speed of up to 60 km/h for little loss of time during transfers
  • Greatly reduced engine speed when travelling speed is reached

365 DAYS in municipal technology

Versatility in both municipal technology and mountain farming.

Year-round use for the Muli T15 V.

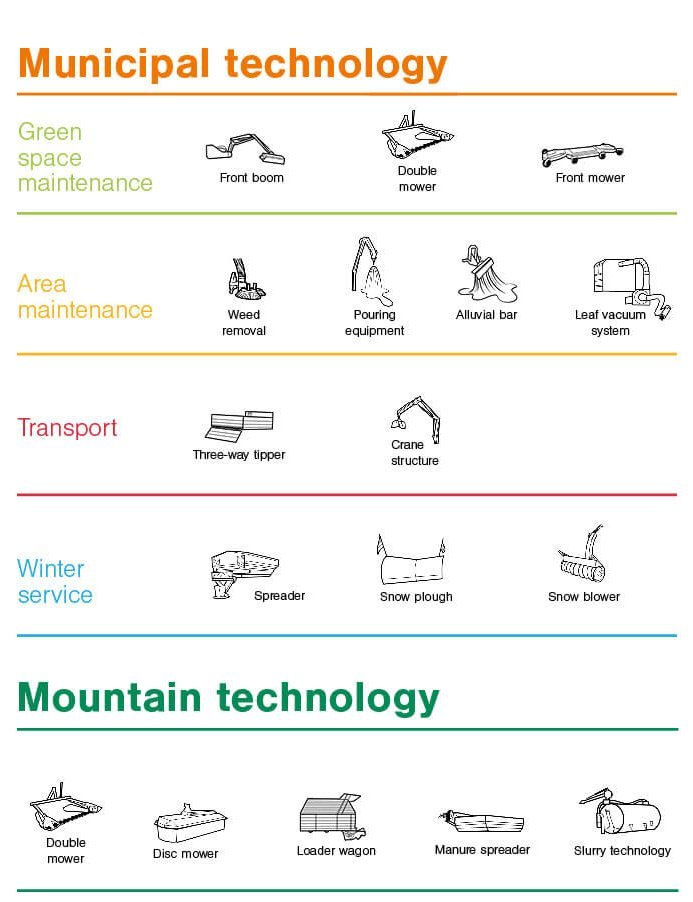

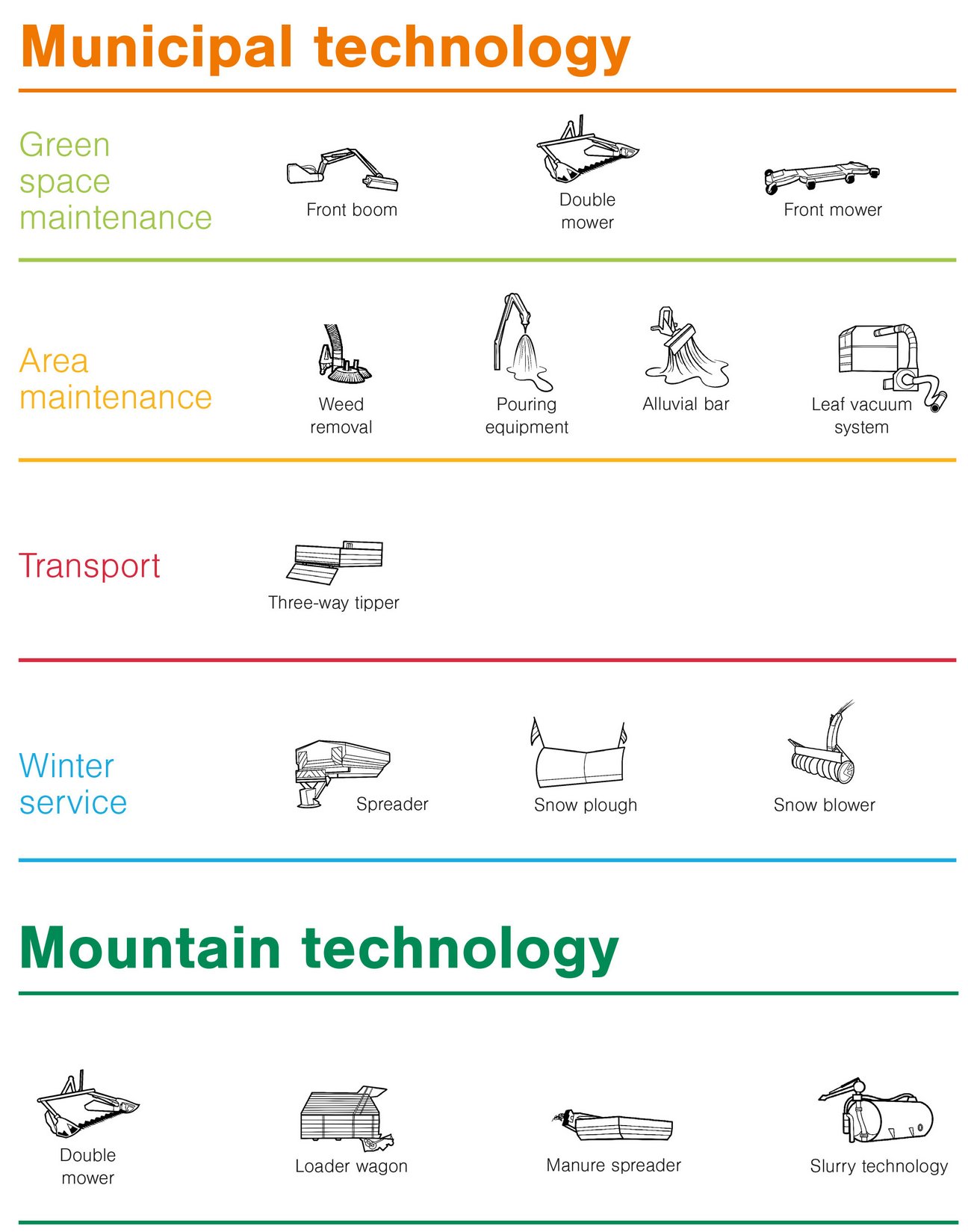

The Muli T15 V from REFORM combines versatility, efficiency, and rugged technology – perfect for municipal technology and mountain farming.

Municipal Technology: In green space maintenance, it impresses with a front boom, double-blade mower, or front mower. For area care, it excels with weed control, irrigation systems, leveling bars, or leaf suction systems. In transportation, the Muli T15 V stands out with a three-way tipper, crane setup, or hook lift system. For winter services, it is indispensable with a spreader, snow plow, or snow blower.

Mountain Farming Technology: The Muli T15 V handles steep slopes with a double-blade mower or disc mower, transports feed with a forage wagon, and supports with a manure spreader or slurry technology.

Whether it's green space maintenance, transportation, or winter service – the Muli T15 V is your reliable partner in any situation!

NEW drive unit

DEUTZ diesel engine ensures optimum engine performance with low fuel consumption and REFORM continuously variable transmission with additional group shifting.



  • High efficiency and wearfree operation
  • Sensitive and seamless speed adjustment
  • Permanent traction of the wheels for optimum traction and high driving safety
  • Full concentration of the operator on the actual work
  • Precise manoeuvring and quick changing the direction of travel
  • Integrated group switching for uniquely high tractive force
  • Strong holding torque on slopes even when fully loade

More Highlights

The Muli T15 V – The new Muli premium class is infinitely powerful and exceptionally efficient with 143 hp, 550 Nm, and a continuously variable transmission.



  • Permanent all-wheel drive
  • Powershift longitudinal locking differential
  • Differential lock for front and rear axle
  • Retarder brake system on all-wheel bases
  • REFORM centre tube for protected travel and PTO drive
  • Long-life and maintenance-free AGM battery
  • Speed-controlled fans and fan reversal
  • Full LED lighting
  • Engine oil level indicator via sensor
  • HCS (High Comfort Suspension) suspension
  • All-wheel steering at the touch of a button on the joystick
  • 3 steering modes (front / all-wheel / crab steering)
  • Portal axles for high ground clearance
  • Low loading sill on the tipper body
  • Extensive standard equipment

Technical data

Performance 105 kW / 143 hp
Dead weight from 4,050 kg
Maximum permissible gross weight 10,000 kg
Wheelbase 2,805 / 3,180 mm

Overall height

2,385 mm
Wheel outer width single tyre * from 1,960 to 2,150 mm

Overall length

4,900 / 5,275 mm

*depending on the tyres
