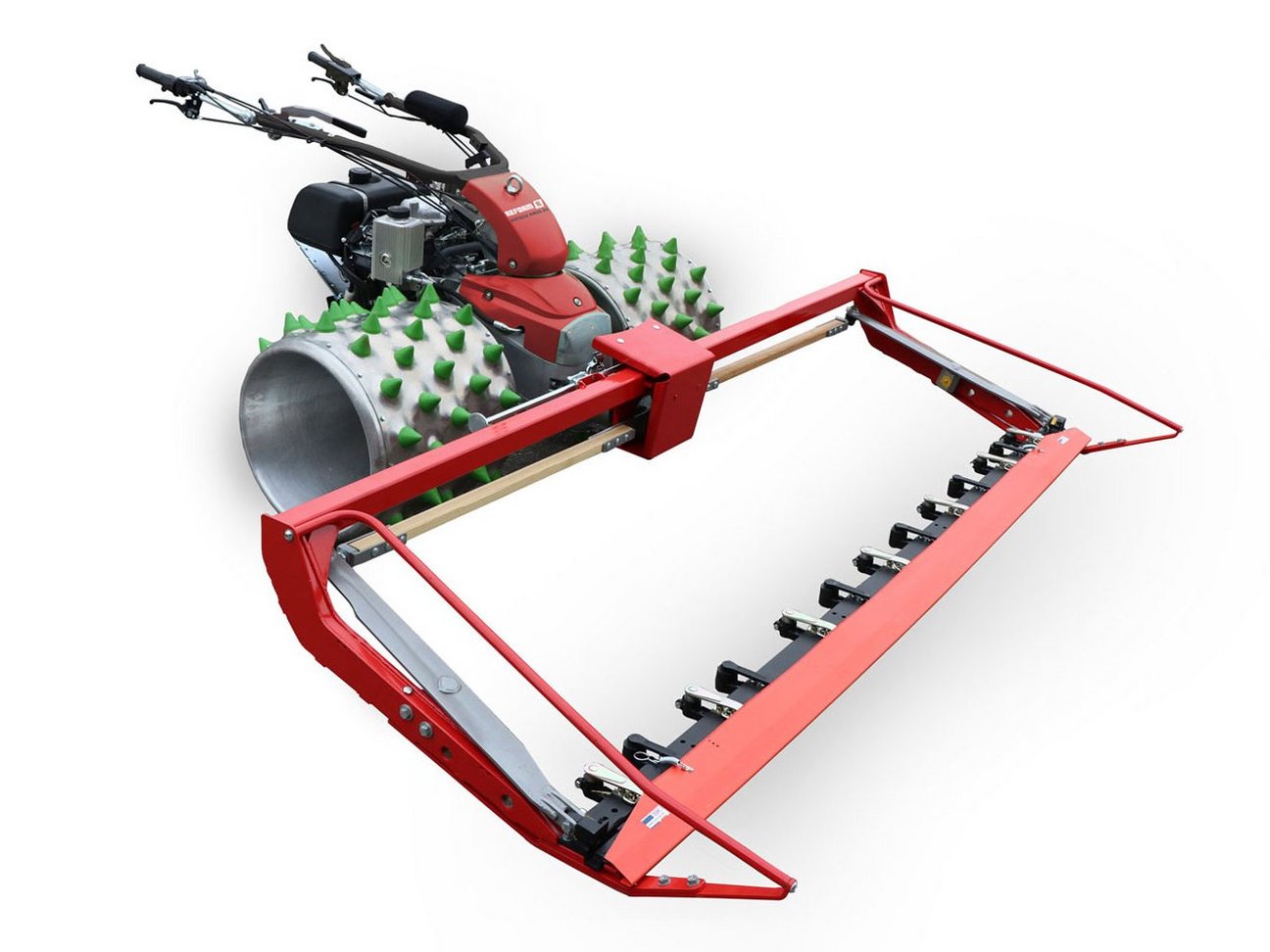

Motech RM22

The powerful universal tool carrier.

The Motech RM 22.23 combines power, compactness and manoeuvrability in one unit and is very comfortable and easy to operate thanks to the DualDrive travel control. The unit is based on a hydraulic double pump and was designed with a standard reversible bar for municipal applications, area maintenance and landscaping. The machine features a smaller track width for working in confined spaces with narrow tools and a centrally positioned axle for easier lifting of heavy attachments. A soft bar bearing makes low-effort and efficient working possible, even over long shifts. The Motech RM 22 is equipped as standard with bar steering or on request with lever steering. The ZeroTurn function also makes it possible to turn quickly on the spot without damaging the soil.

The Motech RM 22.23 is equipped with a Briggs & Stratton Vanguard 2-cylinder engine with 17 kW/23 hp and a standard electric starter.



The benefits at a glance

Engine

RM 22.23
4-stroke petrol engine 2-cylinder
BRIGGS & STRATTON Vanguard
17 kW/23 hp
3,600 rpm nominal speed

Axle/steering

Axle with one hydraulic motor per
heel
On request: axle widening
or broad gauge axle
Tandard reversible bar and
mechanical freewheel switching
Electro-hydraulic bar steering
with zero-turn function
On request electro-hydraulic lever steering
Switchable

Drive

Hydrostatic drive via hydrostatic
double pump and one hydraulic
motor per wheel
Speeds up to 8 km/h
Clutch
Electromagnetic clutch

Interface

Mechanical PTO
1000 rpm at 3,600 rpm clockwise
Coupling point
Tool-less quick release lock via stepped connection shank, 78/80 mm
Additional hydraulics optional
2 double acting control units
3.5 litres at 150 bar
for e.g. inclination adjustment with
various attachments

Technical data

Power

RM 22.23: 17 kW/23 hp

Dead weight without tyres211 kg
Additional
equipment

  • Various wheels and wheel combinations
    as well as spike wheels and spike rollers
  • Operating hours meter
  • Lighting components
  • Starter motor,
  • Oil cooler
  • External intake
  • Accessory hydraulic system
  • Additional Hydraulics


Attachments


  • Flail mulcher
  • Weed broom
  • Eco mulcher
  • Power harrow
  • Rotovator
  • Reverse cutter
  • Levelling harrow
  • Path care device
  • Road brush
  • Snow blades
  • Snow blowers
  • Rocker arm mower drive with various cutter bars
  • Twin blade cutter bar
  • Broad gauge mowers
  • and much more
